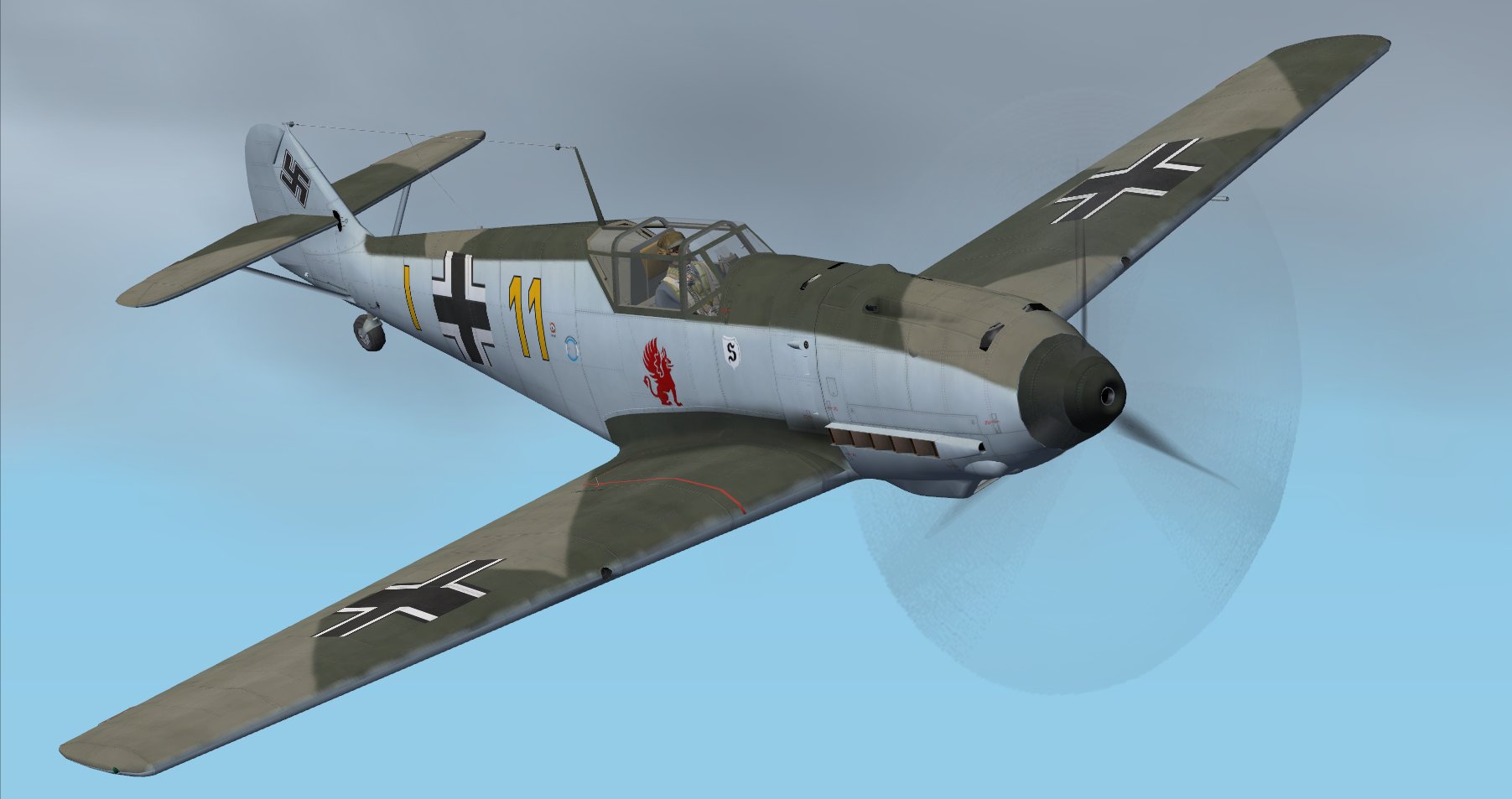

Messerschmitt Bf 109E-1 by Design Team Daedalus
Unit: 9./JG26 March 24 1940 St. Inglvert France
Pilot: Fw. Artur Beese
To improve on the performance afforded by the 690 hp Jumo 210 of the earlier Bf 109 versions, the larger, longer 1080 hp Daimler-Benz DB 601A engine was used. As a consequence, the nose, cooling system, and wings had to be redesigned resulting in the classic Bf 109 series. In late 1938, the Bf 109E entered production. It entered general service with the Luftwaffe in the spring of 1939. A total of 1,183 E-1 were built, 110 of them were E-1/B fighter bomber versions.
There were many small differences between individual E-1s because the E-1 was often modified in the field by groundcrew and rear area repair depots. The production standard was lightly armed with two 7.92mm MG17s above the engine and two in the wings and had no pilot armor. Mods included types of pilot head armor,E-4 type squared canopies, E-7 type pointed spinners, etc., but changing the wing MG17 armament required new different wings.
So each model we have created has its own unique features. This aircraft had a flat plate pilot head armor retrofitted.
By the time the later Bf 109E-4 and Bf 109E-7 marks were equipping the Jagdgeschwaders a program was initiated to withdraw and remanufacture the surviving E-1s to either full E-4 or E-7 standard.
Pstrany is the primary model author with some small model refinement and additions by Captain Kurt as the model was collaborated on during development. Captain Kurt created the textures for each, the 2D instrument panel, the individual .dp files, air files and aircraft.cfg files.
