Make New Aircraft- "tbf1_vt8-1_jun-42"

[rcafmad]

I have an older PTO Mission where a re-skinning of an Aircraft is required.

I tried using the "How to make a stand-alone" aircraft by ndicki from the "Projected knowledge base."

I am one of those guys who measures 3 times but still cuts it short.

I tried loading it in my PTO but it told me politely that I goofed!

Is there anyone willing to review my aircraft to see where I went wrong.

You can send me a pm and I will email you my aircraft and the original.

"Donot Laugh Too Load!

Thanks



[MajorMagee]

PM Sent.



[alcanallen]

Another Query Major

In ETO Rev 1.5 the are two aircraft i like to fly the ETO_Spit_mk1a and ETO_Spit_mk1b the 1a has a cockpit showing gauges but the 1b just has the piller and not working compass iv`e tried to get the 1a layout to work in the 1b with no success,is there a way?

alcanallen.



[rcafmad]

Thanks.

I received your pm and have forwarded the aircraft in question.

rcafmad



[MajorMagee]

The primary issue was that the names for the key files (cfg, xpd, air, m3d) needed to match exactly.

There was also some hex edits needed in the m3d and mos file to reference the new textures.



[MajorMagee]

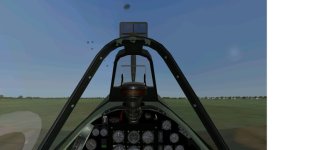

To adjust the cockpit view you need to edit the Pilot Station in the xpd file (it's near the top).

<Station Name="Pilot" Type="pilot_station" View="0" FovUp="30" FovDown="15">

would become

<Station Name="Pilot" Type="pilot_station" View="0" FovUp="20" FovDown="25">

Change the values to suit your need for seeing more or less of the dash panel.



[Daiwilletti]

You can also use the bracket keys [ and ] to move your view in and out when sitting in the cockpit.



[alcanallen]

Thank You

Thanks Major i found the file,and the result is great,i can now see all necessary instruments!
alcanallen.

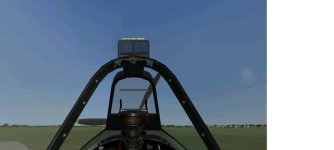

[Frosty]

Haven't you lost part of your windshield in the process? It seems that all that's left of it, is the bullet resistant glass...
