Milviz f-4j/s

T

Tool

Members +
Hi all,

I know I will probably get blasted but here it is, I have the MILVIZ TAC/ADV J/S Phantom and cannot drop bombs or shoot guns at all. I think I tried all variations possible. The Phorums are saying a tutorial is coming, but I just wanted to know if anyone here had any luck with weapons. I looked at the Youtube tutorial but it is for the "Echo" model.

If anyone has been successful please help. Thanks!

Tool

Tool said:
Hi all,

I know I will probably get blasted but here it is, I have the MILVIZ TAC/ADV J/S Phantom and cannot drop bombs or shoot guns at all. I think I tried all variations possible. The Phorums are saying a tutorial is coming, but I just wanted to know if anyone here had any luck with weapons. I looked at the Youtube tutorial but it is for the "Echo" model.

If anyone has been successful please help. Thanks!

Tool
Click to expand...

Perhaps a dumb question, but you do also own TacPack, correct? Though I have yet to get to dropping bombs, I am quite certain TacPack is a prerequisite to drop or fire ordinance for either of the Phantoms.

Not a dumb question at all. Yes, I have Tacpack installed. I even loaded Dino's Tomcat to make sure I could drop bombs. I have almost every single Naval A/C installed (I'm a Navy Chief, ABH type) so this here is fun for me. I really like the vintage stuff mostly.

Have you checked into the Milviz forums? They are usually quite responsive and have a pretty faithful following that might also be able to help if no one here does. Apologies for not being much help. I really love the model, but just getting spun back into flight sim again and now enduring the agonizingly slow'ish process of programming my HOTAS. However, with the great AI Naval ships pack, Sim Works Studios nice carrier AI (and their continued work on carrier AI traffic) and add to this, Milviz F-4J/S models, very much looking forward to trapping aboard a nicely detailed simulation of naval aviation.

Hope you get it resolved. Also, one last tidbit, did you ****? : )

Yeah I checked the Milviz forums. The manual and tutorial are coming. I was just hoping someone had an early solution.

Tool said:
Yeah I checked the Milviz forums. The manual and tutorial are coming. I was just hoping someone had an early solution.
Click to expand...

:applause: They really are a great team and will accommodate most requests promptly. Hope it gets sorted out.

Tool,
Much of the issues are switchology related and I'm sure the information is coming. I tested the FSX-A F-4S as I was just coming off the SWS F-4B/N and the cockpit looks familiar. As you can see in the MV F-4E Tacpack tutorial, alot of work has gone into making sure you have the buttons set up, obvious by the amount of detail in the vid. From one of the MV coders:

For manual bombing mode on the gunsight, set the MIL setting on the wheel that is just to the left of the gunsight mode knob (it is hidden under a CAGE lever).
For all bombing modes:
Set the LABS switch to DIRECT
INST O/S switch to INST O/S
On the dogbone:
Set fuse to ARM NOSE & TAIL or NOSE
Set WPN SEL knob to RIPPLE, PAIRS, or SINGLE
Set STA SEL knob to desired stations
Set INTRVL switch to desired interval.
WPNS switch must be CONV ON, NUCL OFF.

CRV bombing mode is like Dive-Toss in the F-4E. Radar must be in A-G range mode.
On the dogbone, set DL/BOMB switch to AUTO.
Place gunsight reticle on the target. Press and hold pickle button. Pull up until bomb releases, indicated by pull up light on the canopy frame.

FDI gunsight mode is INOP due to lack of info

CDI gunsight mode is CCIP. Radar must be in A-G range mode.
For CDI and MAN bombing modes, set the DL/BOMB switch on the dogbone to MANUAL. Pickle button to release.
Click to expand...

I was trying this out myself last night and made some progress. I did not try any bombs yet but I was able to fire sidewinder, sparrows and guns. One critical configuration item is to set up weapons select buttons for 'heat missiles, 'guns' and 'radar missile' in the MVAMS as I couldn't find any VC controls to select these (they may be there, but I couldn't find them). Each of these is fired using the Trigger (configured in TacPack). Note that you may need to pull and HOLD the trigger to fire the weapon. A short pull and release of the trigger in the case of the sidewinder (for example) advances the station select rather than fire the current selection so you need to hold it to fire. Finally, there are some restrictions around firing missiles and guns that are mounted near the center stations (not all of which i know) to further confuse the novice.

Hang in there !

Just think of all the fun the real pilot/RIO teams have, learning all this, as well as flying the plane properly! :dizzy:
By rote. It would have to be instinctive, or at least second nature to them. All from memory. No time for reading during a combat situation.

Kinda gives one a new respect for not only their flying skills, but the brains, and teamwork, they need. In combat, with all the stress that implies. AND they need to communicate to the others in their flight, GCI controllers, airborne Radar Controllers, etc etc. Clearly, consicely, getting important information to others quickly. AND still perform their mission. Bombing, CAP, whatever.

Not to mention their real stessor, recovering aboard a carrier. Maybe at night. Maybe in bad weather. Maybe in a plane with combat damage of some kind. Or maybe just a failure the Phantoms were prone to. Or any combination of the above. Sheesh!

And to think, I used to have to fix the radars in those things. I had it easy, compared to the pilot/RIO types.
Pat☺

Thank you so much Victory103. That got me going. I bombed the wake, then trapped.

Appreciate everyones help!

Respectfully,

Tool

As much as fighter pilots like to act like they are perfect, they do make mistakes on rare occasion.

My dad flew F-4E's on his second Southeast Asia combat tour (1972) and he recently gave me copies of the notes that he wrote after each mission. I found it interesting that there is a note from his third mission where he chided himself for not setting the armament switches correctly and having to make a second pass.
During his first tour (B-57B in 1966) he kept all of his mission cards and wrote the notes on them. One of those cards has a note about not dive bombing with napalm. Apparently the paint got a little singed on that mission.



PhantomTweak said:
Just think of all the fun the real pilot/RIO teams have, learning all this, as well as flying the plane properly! :dizzy:
By rote. It would have to be instinctive, or at least second nature to them. All from memory. No time for reading during a combat situation.

Kinda gives one a new respect for not only their flying skills, but the brains, and teamwork, they need. In combat, with all the stress that implies. AND they need to communicate to the others in their flight, GCI controllers, airborne Radar Controllers, etc etc. Clearly, consicely, getting important information to others quickly. AND still perform their mission. Bombing, CAP, whatever.

Not to mention their real stessor, recovering aboard a carrier. Maybe at night. Maybe in bad weather. Maybe in a plane with combat damage of some kind. Or maybe just a failure the Phantoms were prone to. Or any combination of the above. Sheesh!

And to think, I used to have to fix the radars in those things. I had it easy, compared to the pilot/RIO types.
Pat☺
Click to expand...

Ok, I just need to know how to get ordnance to appear attached to the aircraft? I select them in the menu, but when I go to external view, there's nothing there. What am I doing wrong? NC

Navy Chief said:
Ok, I just need to know how to get ordnance to appear attached to the aircraft? I select them in the menu, but when I go to external view, there's nothing there. What am I doing wrong? NC
Click to expand...

Drag and drop over to the right onto the aircraft Chief

odourboy said:
Drag and drop over to the right onto the aircraft Chief
Click to expand...

That is what I am doing, and it shows in the load out diagram that I have selected ordnance and is placed. But nothing shows up on the actual aircraft; only in the load out manager. NC

Has anyone calibrated the Milviz Phantom for the Midway and Coral Sea? What is the optimum AOA? I keep getting a 'Power' call when I'm fast!

Navy Chief said:
That is what I am doing, and it shows in the load out diagram that I have selected ordnance and is placed. But nothing shows up on the actual aircraft; only in the load out manager. NC
Click to expand...

I had a similar issue so I uninstalled and reinstalled the Milviz F-4 TP module. Not yet figured out how to launch ordnance, but at least I can see it!

rvn817j said:
I had a similar issue so I uninstalled and reinstalled the Milviz F-4 TP module. Not yet figured out how to launch ordnance, but at least I can see it!
Click to expand...

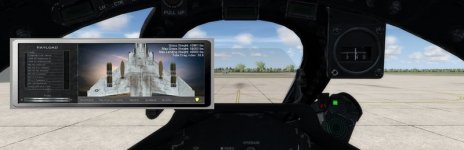

This is what I see inside and out. :banghead: NC

attachment.php
Armament indicated, right?

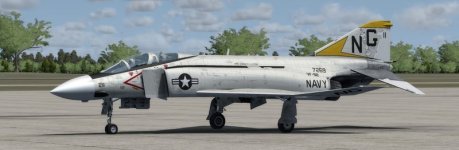

attachment.php
Nada, zip, zero.


Attachments

  • viz1.jpg
    37.7 KB · Views: 8
  • viz2.jpg
    41 KB · Views: 8
Navy Chief said:
This is what I see inside and out. :banghead: NC

attachment.php
Armament indicated, right?

attachment.php
Nada, zip, zero.
Click to expand...
Yep, looks like a problem. :banghead:

Did you try reinstalling the TPADV package? Did you manually move your F-4 S/J aircraft folders at some point prior to running the TPADV install? Looks like a job for the MilViz support forum.

.. and just to confirm, you also went into the Miviz MVAMS and clicked on the F-4J&S to make sure you had all available updates?

Just a thought. But I suspect you'll need to talk to Milviz.

- Rob

Sorry Chief for not getting back sooner with more info.

The reason I mentioned making sure you had all updates for the J/S, was because the exact same thing
happened to me with my J/S install last May in FSX, and I was looking at my emails back and forth with Oisin
about it. What was causing this for me in FSX (load outs showing loaded in the menu but not on the actual plane)
was interference from Tacpack. If I turned Tacpack off, then the J/S load outs worked fine. But I can't find the
support topic on the Milviz forums or the final email with the solution to getting Tacpack and my J/S load
out menu to play together. If memory serves, I think I had been missing an update for the J/S.

That was in FSX, not P3Dv4. But if you have Tacpack, try turning Tacpack off, and then try loading the J/S,
and see what happens.

I don't know if this is any help at all, but I thought I would mention.

- Rob
