Douglas A20 Havoc
- Thread starter Milton Shupe
- Start date
Gorgeous work, Skipper!
This project is coming along very nicely, Milton. I have enjoyed reading and watching about it since you started working on the Havoc. It gives me much more to appreciate what you and your team, as well as other dev's go through when producing a model of this kind of quality. I think of it this way.... If I could watch a team build an XP-74 Superbolt, or an Avia 57 in real life, then having the "boss" hand me the keys and say "Here, take her up and wring her out", something that is never taken lightly by a bloke like me.
Keep em' Flying!
BB686
Thank you Tom. We always appreciate your support and help in testing our work.
Yes, we tend to burn a lot of candles just getting through the basic infrastructure, and some the simple things like gun pods and gun ports that you would think would be easy to do require a lot of hours to do even at my basic level. But the exterior is rather simple compared to the agony of doing the VC in detail as there are no good scale drawings or 3-views for them. They are done at least by me more by sight with very little reference material. I hope what we deliver here is satisfactory. Thanks.
Sundog
SOH-CM-2026
Basically, my book doesn't state what the early bomb sights were. They basically just like small telescopes pointing straight down to me. It does state that the nose of the A-20J was 7" longer than previous models specifically to accommodate the Norden Bomb Sight. It also states, as many here probably already know, that not many of the A-20's had the bomb sight; that it was typically the lead aircraft that had one and the rest of the planes dropped their load off of the leads drop.
Thanks SD. That agrees with my reading as well. I can as a minimum put a base mount in there and save the polys for other things I suppose. We shall see.

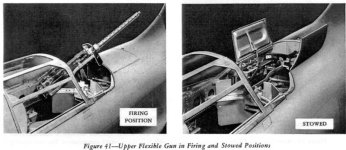

Working on the rear gunner's area now. Hopefully I can use the MG I built for the CANT Z1007 or Harpoon as a starting point.
Attachments
Thanks for the comments. Sorry this is going slow but much yet to do.
Just getting the upper rear MG in place and animated.
Moving on to the lower MG placement.
Attachments
Last edited:
AussieMan
SOH Staff .."Bartender"
.
With the Mallard projects wrapped up, my attention has shifted to the A-20 Havoc full time ..... yeaaaa!!!
I thought that this website provided a good summary of variants and some interesting info so wanted to share:
http://www.americancombatplanes.com/a20_1.html
As for modeling progress, for the A-20-G20 I am wrapping up details in the cockpit.
For the A-20C, I am wrapping up the rear upper gunner's area, and starting on the rear gunner's lower section. That will be followed by mapping the entire aircraft for textures.
Lots to do yet; long way to go, but I am on it now full time.
I thought that this website provided a good summary of variants and some interesting info so wanted to share:
http://www.americancombatplanes.com/a20_1.html
As for modeling progress, for the A-20-G20 I am wrapping up details in the cockpit.
For the A-20C, I am wrapping up the rear upper gunner's area, and starting on the rear gunner's lower section. That will be followed by mapping the entire aircraft for textures.
Lots to do yet; long way to go, but I am on it now full time.
Attachments
Yeaahhh!!!!
That's rally good news Milton!However make sure you take some rest once in a while! We are greedy, but can be patient when we need to
Cheers,
Huub
Yeah, what Huub said. Don't over do it. Also, those preview pics look great. I'm definitely looking forward to finally having a good A-20 for FS.
No problem guys; I have kicked back a bit and on occasion try to get a few things done in trying to wrap up the exterior here.

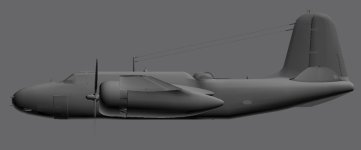

Looking around the exterior for any final changes before I move on.
Attachments
lemonadedrinker
Charter Member
Hi,
Just noticed the extraordinary contribution from Mary Babnick Brown (Wikipedia !)to the Norden bombsights.
Milton, this is looking to be another wonderful creation. Will you be able to model a human hair?
Andy.
Just noticed the extraordinary contribution from Mary Babnick Brown (Wikipedia !)to the Norden bombsights.
Milton, this is looking to be another wonderful creation. Will you be able to model a human hair?
Andy.
Hi,
Just noticed the extraordinary contribution from Mary Babnick Brown (Wikipedia !)to the Norden bombsights.
Milton, this is looking to be another wonderful creation. Will you be able to model a human hair?
Andy.
Thank you Andy; great story.
RE: Human hair: Individual strands of hair range in thickness from 1/1500 to 1/500 of an inch in diameter, depending on the properties of the hair in question. Typically, blond hair is thinnest since it usually does not have a middle layer like dark hair does. Black hair is the coarsest or thickest. In gmax, the smallest exportable size strand is 1/7th of an inch, about .004m (4 millimeters).
https://en.wikipedia.org/wiki/Mary_Babnik_Brown
Last edited:

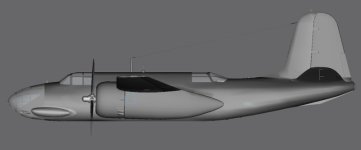

Well, I have the bombardier's area appointed the best I can with the references I have.
Also, added the pilot's entry step and animated.
Left to do on the exterior is:
add wing tip lights (smaller for the "C" than the "G"),
add rear belly gunner hatch and MG,
flesh out top cockpit hatch infrastructure and add animated curtains,
add the Bombay doors opening mechanism,
change cowl flaps to "C" style,
and, change exhausts to "C" style.
That should wrap up the exterior on the "C" model.
Also, added the pilot's entry step and animated.
Left to do on the exterior is:
add wing tip lights (smaller for the "C" than the "G"),
add rear belly gunner hatch and MG,
flesh out top cockpit hatch infrastructure and add animated curtains,
add the Bombay doors opening mechanism,
change cowl flaps to "C" style,
and, change exhausts to "C" style.
That should wrap up the exterior on the "C" model.
Attachments
Looking GREAT, this is a Masterpiece indeed!
