Fokker GI WIP

Z

ZiePeregrine

Members +
Hi everybody,

I may think you find this intresting, another dutch plane yay :p
So this is my personal project the Fokker GI which I will, excuse me AM creating.

So here we go. I started this project because I am sucker for dutch planes and I wanted to try and do a pretty detailed model of it including but not limited to:


  1. 4 lods for rendering at several distances (this will not work in fsx but does in warthunder which this plane was orignally intended for
  2. 4 damaged lods again does not affect fsx but warthunder it does
  3. a detailed cockpit model and here you guys need to come in :3
  4. and a collision model again does not affect fsx shamefully :/
  5. External animation
  6. Internal animation
So yes quite a few bits....... And I need help because I ran into a few problems regarding info of the cockpit, the problem is, there isnt allot of it and certainly no information about color and such. Obvious color out of the black and fotos were only a few...........
anyone have any info (particulary closeups) of the cockpit for data regarding the function of instruments lettering and color?

Now the pictures. Well I got quite a few here you go.
attachment.php
attachment.php
attachment.php
attachment.php


Attachments

  • fB1SIBY.jpg
    16.9 KB · Views: 80
  • SoMz7cx.jpg
    19.8 KB · Views: 83
  • qwWwnMH.jpg
    26 KB · Views: 85
  • udZSI4N.png
    191.3 KB · Views: 83
  • bVYFX95.jpg
    15.7 KB · Views: 6
Last edited:
Looks great... Keep going!

It looks like a great addition... Ito's opus is a bit long on the tooth by now...





Cheers,
G.

Great to see this model is done for FSX. I have been involved in the development of the one below and I should still have quite some information.
There are quite a few interior pictures, but it was very difficult to find out whether it was a prototype, Mercury or Wasp version on the picture.

At this moment it would be much easier to gather the information required as we now have the splendid books Fokker G-1 part 1 and 2 by Frits Gerdessen, Karel kalkman, Cor Oostveen and Wim Vredeling. When you want to build the G-1 Mercury I advise you to purchase the book as it contains a wealth of information.

Cheers,
Huub






huub vink said:
Great to see this model is done for FSX. I have been involved in the development of the one below and I should still have quite some information.
There are quite a few interior pictures, but it was very difficult to find out whether it was a prototype, Mercury or Wasp version on the picture.

At this moment it would be much easier to gather the information required as we now have the splendid books Fokker G-1 part 1 and 2 by Frits Gerdessen, Karel kalkman, Cor Oostveen and Wim Vredeling. When you want to build the G-1 Mercury I advise you to purchase the book as it contains a wealth of information.

Cheers,
Huub

Click to expand...

Yeah I read it unfortanutaly it is a bit on the pricey side so I rather borrow it, such a shame but I get it. Btw the textures on that plane are just amazing I am going to see if I can make something like that to :)

As you can see on the images of the VC, the model made ny Michel Migaud was never finished. However I still have all information, based on which you should be able to create a nice VC. But to be honest the VC is just the first challenge you will have to meet. The middle section where the radioman was located has his own set of instruments and so does the rear section with the gunner.........

This is why it is a actually a very complex model to create.

I will send you an e-mail with pictures from the real cockpit. As we are both Dutch it should be easy for us to communicate.

Cheers,
Huub

huub vink said:
As you can see on the images of the VC, the model made ny Michel Migaud was never finished. However I still have all information, based on which you should be able to create a nice VC. But to be honest the VC is just the first challenge you will have to meet. The middle section where the radioman was located has his own set of instruments and so does the rear section with the gunner.........

This is why it is a actually a very complex model to create.

I will send you an e-mail with pictures from the real cockpit. As we are both Dutch it should be easy for us to communicate.

Cheers,
Huub
Click to expand...

That would be so great!

I really recommend to buy the book Huub adviced you. The authors offer great insight into the two G.1 versions (which are completely different). Moreover, it gives a good insight in everything related to the aircraft and the Fokker factory then.

When budget is limited try to get part 1 of the Fokker G-1 books. This covers the development and contains a lot of technical information. Part 2 is more about the operational use of the aircraft.

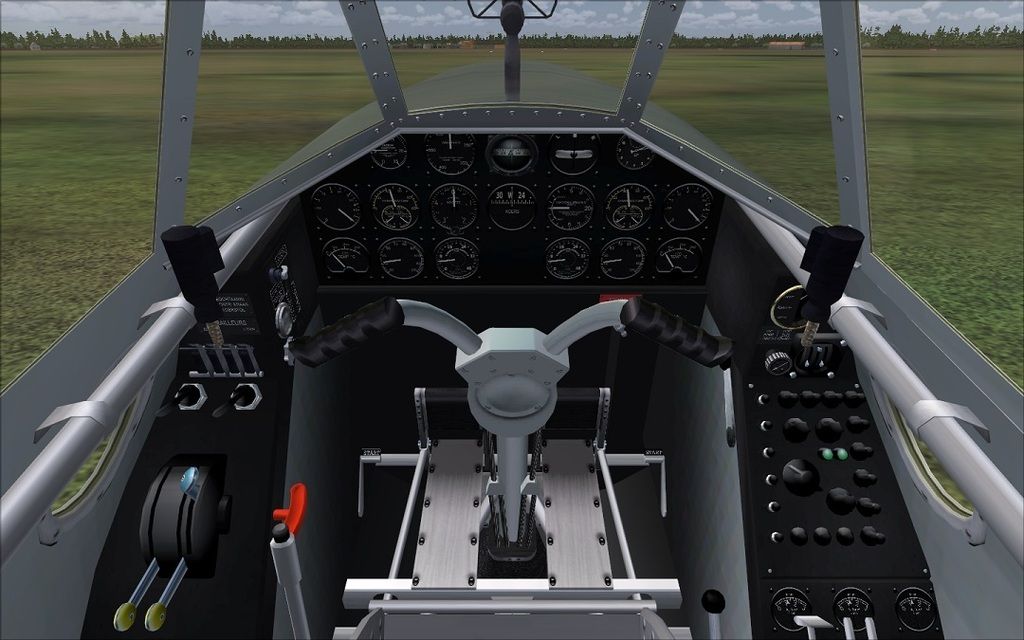

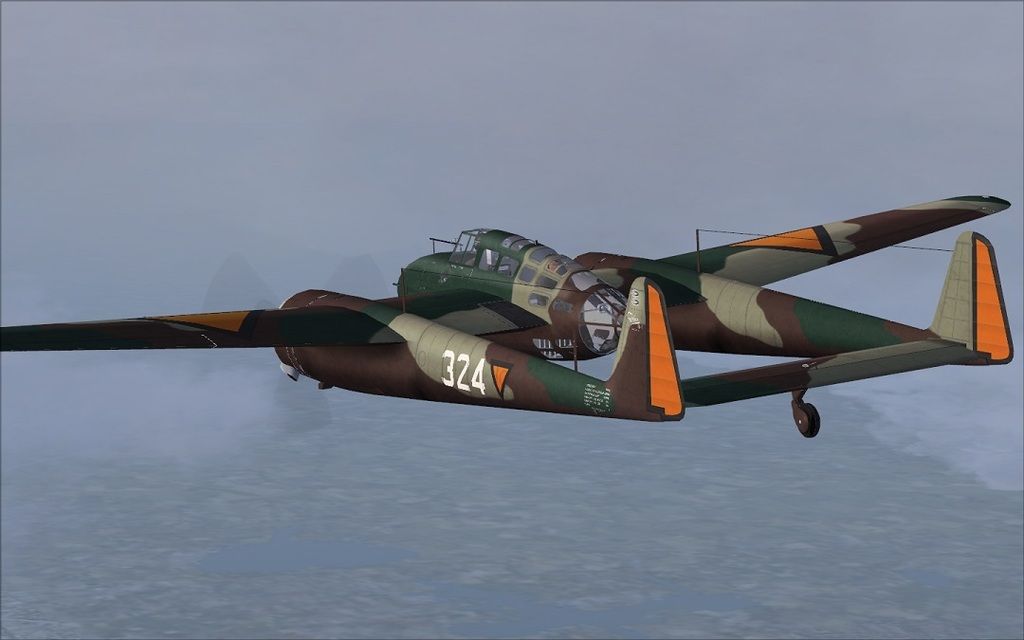

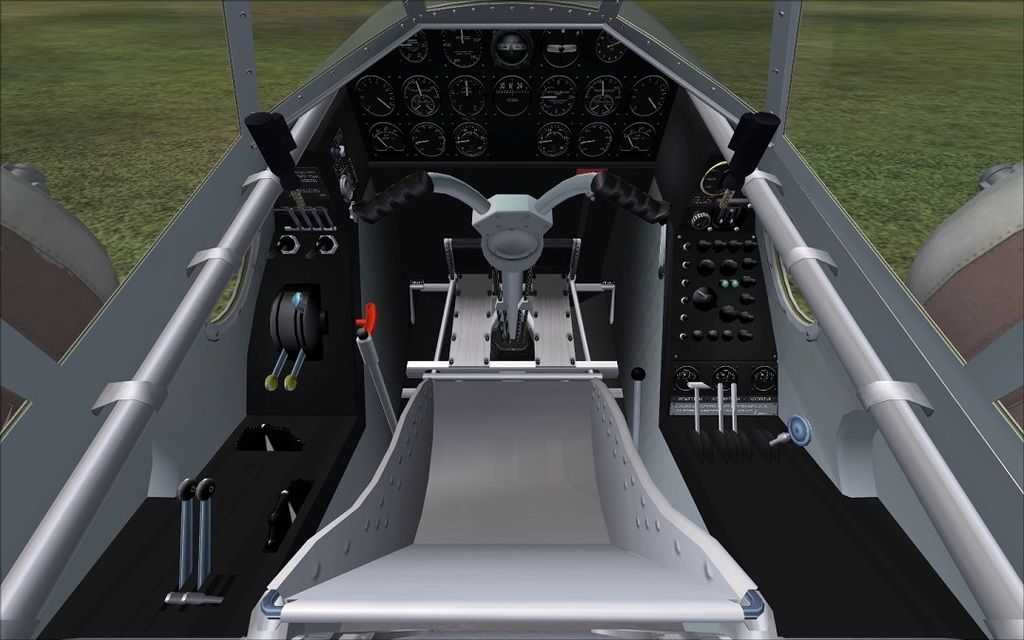

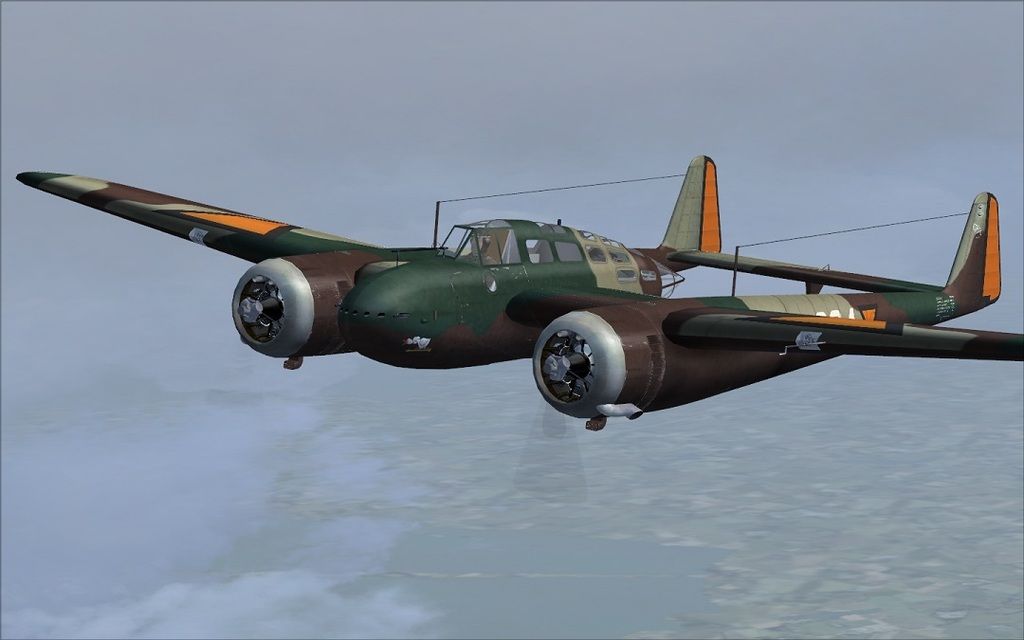

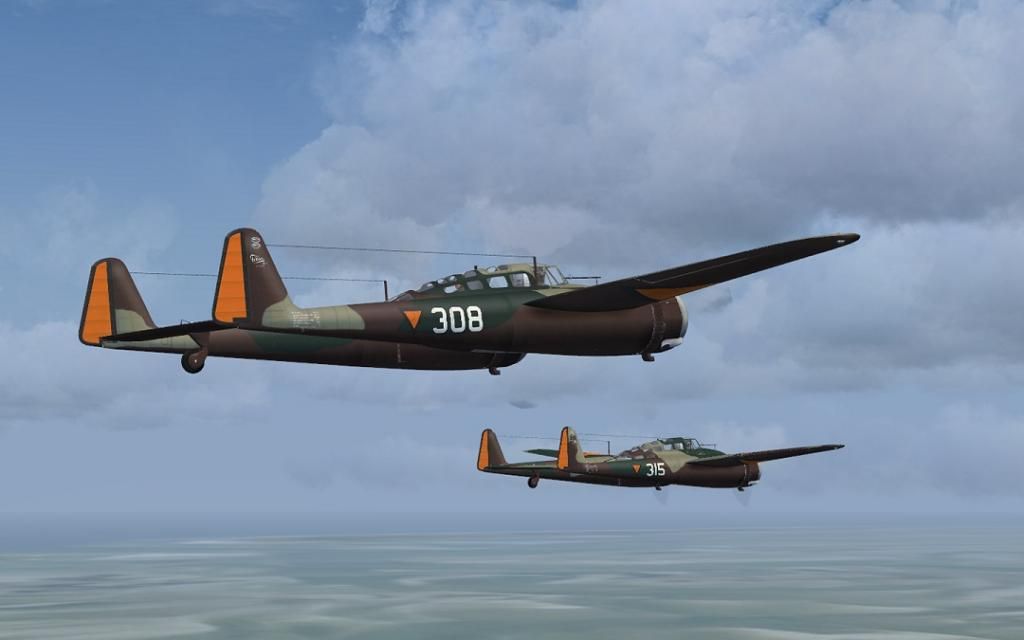

And a few pictures to stay in the mood...... :biggrin-new:





Cheers,
Huub

huub vink said:
Great to see this model is done for FSX. I have been involved in the development of the one below and I should still have quite some information.
There are quite a few interior pictures, but it was very difficult to find out whether it was a prototype, Mercury or Wasp version on the picture.

At this moment it would be much easier to gather the information required as we now have the splendid books Fokker G-1 part 1 and 2 by Frits Gerdessen, Karel kalkman, Cor Oostveen and Wim Vredeling. When you want to build the G-1 Mercury I advise you to purchase the book as it contains a wealth of information.

Cheers,
Huub





Click to expand...

Beautiful work. Is this available or still a WIP?

huub vink said:
When budget is limited try to get part 1 of the Fokker G-1 books. This covers the development and contains a lot of technical information. Part 2 is more about the operational use of the aircraft.


And a few pictures to stay in the mood...... :biggrin-new:





Cheers,
Huub
Click to expand...
It is really beautifull :p

Ondertussen INSERT SCRATCHY VOICE HERE

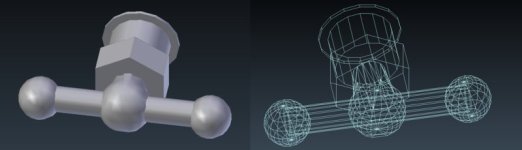

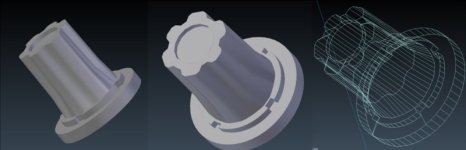

Thnx to the amazing photos of Huub I redid some of the models *more on the way:

Steeringwheel:
attachment.php

attachment.php

attachment.php


Just some of the nicest models :D also dutcheeseblend that reference fuse was really handy!


Attachments

  • s-l225.jpg
    9.2 KB · Views: 2
  • fOUYUoe.jpg
    33.3 KB · Views: 2
  • ZcdKNYY.jpg
    37 KB · Views: 81
  • ojGxkDP.jpg
    22.9 KB · Views: 81
  • Naamloos.jpg
    27.9 KB · Views: 81
  • 30a39547-f17d-457f-ad1e-86b61aa65d5a.jpg
    111.7 KB · Views: 2
Btw I need you guys opinion: Do you guys think the igniter new photo is sort of similar to the one in the old photo below numbered 26 to 31?:
attachment.php

attachment.php


Attachments

  • 30a39547-f17d-457f-ad1e-86b61aa65d5a.jpg
    111.7 KB · Views: 82
  • ACS288lg.jpg
    58.1 KB · Views: 82
Dutcheeseblend said:
No, this should be a Bär switch. See nederlandseluchtvaart.nl to find more on this.

Btw, what reference fuse do you mean?
Click to expand...

It is not the fuse sorry i meant the fuse holder from a certain french company can't remember the name though. Btw I cant seem to open the site it displays an error message

Edit i have found a image of a bosch bär switch thank you!
