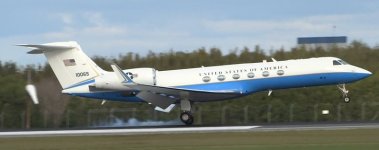

Anyone working on a payware Gulfstream?

Seahawk72s said:
Do you have attached text...? Not sure what you mean by "detailed tutorial".
Click to expand...


Yes, that is the text. I need to adjust my cockpit view of the overhead panel. Difficult to see the switches at a angle, using the pan view. I will get things figured out. Neck/back problems keep me from spending much time simming lately.

Getting old sucks, but NOT getting old would be worse! NC

Navy Chief said:
Yes, that is the text. I need to adjust my cockpit view of the overhead panel. Difficult to see the switches at a angle, using the pan view. I will get things figured out. Neck/back problems keep me from spending much time simming lately.

Getting old sucks, but NOT getting old would be worse! NC
Click to expand...

Same for me. I made up these camera views...

Code:
//////////////////////////////////////////////////////

// Spot Camera Views External


[CameraDefinition.0]
Title = "Tail"
Guid = {5c1df273-034b-4e7f-953a-9d5e26f1646c}
Description = Looking forward from behind the aircraft
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .70
ShowWeather = Yes
InitialXyz = 0, 6, -35.0
InitialPbh = 8, 0, 0
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=FALSE
ClipMode=Minimum

[CameraDefinition.1]
Title = "Right Wing"
Guid = {C690EAFD-223A-42d0-99E0-681ADF93BB59}
Description = View from the right wing tip looking at the cockpit
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.45
ShowWeather = Yes
InitialXyz = 25.8, 1.6, 0.0
InitialPbh = 6, 0, 266
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect = FALSE
ClipMode=Minimum

[CameraDefinition.2]
Title = "Cockpit Right View"
Guid = {41f9cfc1-75c3-499a-bf96-105355ffc254}
Description = View from outside left aircraft towards pilot
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.4
ShowWeather = Yes
InitialXyz = 5.00, 3.1, 16.5
InitialPbh = 10, 0, -145
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect = No
ClipMode=Minimum

[CameraDefinition.3]
Title = "Nose"
Guid = {3D31E848-6F6F-45d4-8E43-6290708756E3}
Description =Looking back from the nose toward the cockpit
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .30
ShowWeather = Yes
InitialXyz = 0, 2.0, 14.0
InitialPbh = -0.5, 0, 180
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=FALSE
ClipMode=Minimum


[CameraDefinition.4]
Title = "Nose Gear"
Guid = {5517F522-6C47-40da-BE66-3D7E10520D75}
Description =Looking back from the nose gear
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .6
ShowWeather = Yes
InitialXyz =  0, -1.0, 14.0
InitialPbh = -4, 0, 180
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=FALSE
ClipMode=Minimum

[CameraDefinition.5]
Title = "Cockpit Left View"
Guid = {dd42965e-23e8-48c4-b1b5-3d9267a4e3f2}
Description = View from outside left aircraft towards pilot
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.4
ShowWeather = Yes
InitialXyz = -5.0, 3.1, 16.5
InitialPbh = 10, 0, 145
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect = No
ClipMode=Minimum

[CameraDefinition.6]
Title = "Cabin Door"
Guid = {04a7b57d-8cb6-4a58-a94b-3af2dbe29439}
Description = View of the Cabin Door
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .7
ShowWeather = Yes
InitialXyz = -8, 1.5, 11.75
InitialPbh = 12, 0, 120
XyzAdjust = TRUE
Category= Aircraft
MomentumEffect= TRUE
ClipMode=Minimum

[CameraDefinition.7]
Title = "Left Wing"
Guid = {f25dfa2e-fd2e-4b89-81e2-0575cbcb60de}
Description = View from the left wing tip looking at the cockpit
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.45
ShowWeather = Yes
InitialXyz = -25.8, 1.6, 0.0
InitialPbh = 6, 0, 94
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect = No
ClipMode=Minimum


[CameraDefinition.8]
Title = "Landing Gear"
Guid = {96873AAD-621B-4C45-8A58-DEF7B7FCB051}
Description = View of the landing gear and left wing inboard flaps
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .52
ShowWeather = Yes
InitialXyz = -2.2, -1.4, -7
InitialPbh = 0, 0, 21
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=TRUE
ClipMode=Minimum

[CameraDefinition.10]
Title = "Aft Fuselage View"
Guid = {6b9017cc-53e5-4f23-81c7-17507e22e60a}
Description = Looking forward from above the aft fuselage
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .60
ShowWeather = Yes
InitialXyz = -8, 5.4, -25.6
InitialPbh = 12, 0, 10
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=TRUE
ClipMode=Minimum

]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

]] Spot Camera Views Internal

[CameraDefinition.001]
Title = "VC Left Seat"
Guid = {09e8f00d-9c90-44b6-92a5-f432ca2986a0}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = YES
AllowZoom = TRUE
InitialZoom = 0.35
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare= FALSE
Category = Cockpit
PitchPanRate= 20
HeadingPanRate = 60
InitialXyz= 0.0, 0.00, 0.0
InitialPbh= 11, 0, 0

[CameraDefinition.002]
Title = "VC Left Seat - Slanted"
Guid = {97001c8a-394f-47fd-83f5-193d6fffd533}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = YES
AllowZoom = TRUE
InitialZoom = 0.60
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare= FALSE
Category = Cockpit
PitchPanRate= 20
HeadingPanRate = 60
InitialXyz= 0.0, 0.00, 0.0
InitialPbh= 27, 0, 15

[CameraDefinition.003]
Title = "VC Left Seat - Wideview"
Guid = {c33ba446-2c0b-4994-bb7a-dfb9131b6507}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = YES
AllowZoom = TRUE
InitialZoom = 0.40
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare= FALSE
Category = Cockpit
PitchPanRate= 20
HeadingPanRate = 60
InitialXyz= 0.0, 0.00, 0.0
InitialPbh= 22, 0, 22

[CameraDefinition.004]
Title = "Right Seat"
Guid = {8ff6c134-098d-409f-baec-caba3f683f98}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = YES
AllowZoom = TRUE
InitialZoom = 0.30
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= 1.0, 0.0, 0.0
InitialPbh= 12, 0, 0

[CameraDefinition.005]
Title = "Engine Controls"
Guid = {a5741a54-ea6d-4580-9709-c99161e38a83}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.65
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= 0.5, 0.0, 0.0
InitialPbh= 65, 0, 0

[CameraDefinition.006]
Title = "Center Console"
Guid = {195EAB58-9E4A-2E2A-A34C-A8D9D948F078}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.70
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= 0.5, 0.0, -0.22
InitialPbh= 85, 0, 0

[CameraDefinition.007]
Title = "Gust Lock"
Guid = {4124b7fc-129b-4fa5-8202-595948077605}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 1.50
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= 0.5, -0.5, -0.8
InitialPbh= 14, 0, 0

[CameraDefinition.008]
Title = "Lower Overhead Panel"
Guid = {195EAB58-9E4A-1E2A-A34C-A8D9D948F078}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.30
SmoothZoomTime = 2.0
ZoomPanScalar = 1.15
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= .5, 0.0, 0
InitialPbh= -70, 0, 0

[CameraDefinition.009]
Title = "Upper Overhead Panel"
Guid = {4ca337db-ae88-4c5f-96ea-ddebbd2a86fe}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.30
SmoothZoomTime = 2.0
ZoomPanScalar = 1.15
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= .5, 0.0, -0.1
InitialPbh= -77, 0, 0

////////////////////////////////////////////////////////////////////

Thanks!

Btw, I read thru all the various views......is the inside cabin modeled yet? NC


Seahawk72s said:
Same for me. I made up these camera views...

Code:
//////////////////////////////////////////////////////

// Spot Camera Views External


[CameraDefinition.0]
Title = "Tail"
Guid = {5c1df273-034b-4e7f-953a-9d5e26f1646c}
Description = Looking forward from behind the aircraft
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .70
ShowWeather = Yes
InitialXyz = 0, 6, -35.0
InitialPbh = 8, 0, 0
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=FALSE
ClipMode=Minimum

[CameraDefinition.1]
Title = "Right Wing"
Guid = {C690EAFD-223A-42d0-99E0-681ADF93BB59}
Description = View from the right wing tip looking at the cockpit
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.45
ShowWeather = Yes
InitialXyz = 25.8, 1.6, 0.0
InitialPbh = 6, 0, 266
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect = FALSE
ClipMode=Minimum

[CameraDefinition.2]
Title = "Cockpit Right View"
Guid = {41f9cfc1-75c3-499a-bf96-105355ffc254}
Description = View from outside left aircraft towards pilot
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.4
ShowWeather = Yes
InitialXyz = 5.00, 3.1, 16.5
InitialPbh = 10, 0, -145
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect = No
ClipMode=Minimum

[CameraDefinition.3]
Title = "Nose"
Guid = {3D31E848-6F6F-45d4-8E43-6290708756E3}
Description =Looking back from the nose toward the cockpit
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .30
ShowWeather = Yes
InitialXyz = 0, 2.0, 14.0
InitialPbh = -0.5, 0, 180
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=FALSE
ClipMode=Minimum


[CameraDefinition.4]
Title = "Nose Gear"
Guid = {5517F522-6C47-40da-BE66-3D7E10520D75}
Description =Looking back from the nose gear
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .6
ShowWeather = Yes
InitialXyz =  0, -1.0, 14.0
InitialPbh = -4, 0, 180
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=FALSE
ClipMode=Minimum

[CameraDefinition.5]
Title = "Cockpit Left View"
Guid = {dd42965e-23e8-48c4-b1b5-3d9267a4e3f2}
Description = View from outside left aircraft towards pilot
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.4
ShowWeather = Yes
InitialXyz = -5.0, 3.1, 16.5
InitialPbh = 10, 0, 145
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect = No
ClipMode=Minimum

[CameraDefinition.6]
Title = "Cabin Door"
Guid = {04a7b57d-8cb6-4a58-a94b-3af2dbe29439}
Description = View of the Cabin Door
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .7
ShowWeather = Yes
InitialXyz = -8, 1.5, 11.75
InitialPbh = 12, 0, 120
XyzAdjust = TRUE
Category= Aircraft
MomentumEffect= TRUE
ClipMode=Minimum

[CameraDefinition.7]
Title = "Left Wing"
Guid = {f25dfa2e-fd2e-4b89-81e2-0575cbcb60de}
Description = View from the left wing tip looking at the cockpit
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.45
ShowWeather = Yes
InitialXyz = -25.8, 1.6, 0.0
InitialPbh = 6, 0, 94
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect = No
ClipMode=Minimum


[CameraDefinition.8]
Title = "Landing Gear"
Guid = {96873AAD-621B-4C45-8A58-DEF7B7FCB051}
Description = View of the landing gear and left wing inboard flaps
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .52
ShowWeather = Yes
InitialXyz = -2.2, -1.4, -7
InitialPbh = 0, 0, 21
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=TRUE
ClipMode=Minimum

[CameraDefinition.10]
Title = "Aft Fuselage View"
Guid = {6b9017cc-53e5-4f23-81c7-17507e22e60a}
Description = Looking forward from above the aft fuselage
Origin = Center
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = .60
ShowWeather = Yes
InitialXyz = -8, 5.4, -25.6
InitialPbh = 12, 0, 10
XyzAdjust = TRUE
Category=Aircraft
MomentumEffect=TRUE
ClipMode=Minimum

]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

]] Spot Camera Views Internal

[CameraDefinition.001]
Title = "VC Left Seat"
Guid = {09e8f00d-9c90-44b6-92a5-f432ca2986a0}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = YES
AllowZoom = TRUE
InitialZoom = 0.35
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare= FALSE
Category = Cockpit
PitchPanRate= 20
HeadingPanRate = 60
InitialXyz= 0.0, 0.00, 0.0
InitialPbh= 11, 0, 0

[CameraDefinition.002]
Title = "VC Left Seat - Slanted"
Guid = {97001c8a-394f-47fd-83f5-193d6fffd533}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = FALSE
PanPbhAdjust = Swivel
PanPbhReturn = FALSE
Track = None
ShowAxis = YES
AllowZoom = TRUE
InitialZoom = 0.60
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare= FALSE
Category = Cockpit
PitchPanRate= 20
HeadingPanRate = 60
InitialXyz= 0.0, 0.00, 0.0
InitialPbh= 27, 0, 15

[CameraDefinition.003]
Title = "VC Left Seat - Wideview"
Guid = {c33ba446-2c0b-4994-bb7a-dfb9131b6507}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = YES
AllowZoom = TRUE
InitialZoom = 0.40
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare= FALSE
Category = Cockpit
PitchPanRate= 20
HeadingPanRate = 60
InitialXyz= 0.0, 0.00, 0.0
InitialPbh= 22, 0, 22

[CameraDefinition.004]
Title = "Right Seat"
Guid = {8ff6c134-098d-409f-baec-caba3f683f98}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = YES
AllowZoom = TRUE
InitialZoom = 0.30
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= 1.0, 0.0, 0.0
InitialPbh= 12, 0, 0

[CameraDefinition.005]
Title = "Engine Controls"
Guid = {a5741a54-ea6d-4580-9709-c99161e38a83}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.65
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= 0.5, 0.0, 0.0
InitialPbh= 65, 0, 0

[CameraDefinition.006]
Title = "Center Console"
Guid = {195EAB58-9E4A-2E2A-A34C-A8D9D948F078}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.70
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= 0.5, 0.0, -0.22
InitialPbh= 85, 0, 0

[CameraDefinition.007]
Title = "Gust Lock"
Guid = {4124b7fc-129b-4fa5-8202-595948077605}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 1.50
SmoothZoomTime = 2.0
ZoomPanScalar = 1.0
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= 0.5, -0.5, -0.8
InitialPbh= 14, 0, 0

[CameraDefinition.008]
Title = "Lower Overhead Panel"
Guid = {195EAB58-9E4A-1E2A-A34C-A8D9D948F078}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.30
SmoothZoomTime = 2.0
ZoomPanScalar = 1.15
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= .5, 0.0, 0
InitialPbh= -70, 0, 0

[CameraDefinition.009]
Title = "Upper Overhead Panel"
Guid = {4ca337db-ae88-4c5f-96ea-ddebbd2a86fe}
Origin = Virtual Cockpit
MomentumEffect = No
SnapPbhAdjust = Swivel
SnapPbhReturn = False
PanPbhAdjust = Swivel
PanPbhReturn = False
Track = None
ShowAxis = FALSE
AllowZoom = TRUE
InitialZoom = 0.30
SmoothZoomTime = 2.0
ZoomPanScalar = 1.15
ShowWeather = Yes
XyzAdjust = TRUE
ShowLensFlare=FALSE
Category = Cockpit
PitchPanRate=20
HeadingPanRate=60
InitialXyz= .5, 0.0, -0.1
InitialPbh= -77, 0, 0

////////////////////////////////////////////////////////////////////
Click to expand...

Navy Chief said:
Yes, that is the text. I need to adjust my cockpit view of the overhead panel. Difficult to see the switches at a angle, using the pan view. I will get things figured out. Neck/back problems keep me from spending much time simming lately.

Getting old sucks, but NOT getting old would be worse! NC
Click to expand...

Nah!.......60 is the new 40.
:biggrin-new:

Seahawk72s said:
Not yet to the inside cabin...
Click to expand...

Thanks for the paints seahawk. :encouragement:




Well, I finally got the jet started, taxied to a runway and took off. After a few times of going through the checklist, I won't have any problems. But it has been a long time since I began a flight with a cold/dark cockpit.

This is indeed a beautiful model. The designers are dedicated to customer service, btw. They are truly going the extra mile to create a quality product. Thank you! NC:encouragement:

Seahawk72s said:
I'm not sure what color the stripes are....red\black\red..?
Click to expand...

attachment.php


Am not 100% certain, but the stripes should be dark navy blue and gold.

Really IS a beautiful aircraft, isn't it?

NC


Attachments

  • Gulfstream_Aerospace_C-20G_Gulfstream_IV_(G-IV),_USA_-_Navy_AN0289174.jpg
    101.3 KB · Views: 20
Navy Chief said:
Am not 100% certain, but the stripes should be dark navy blue and gold. NC
Click to expand...

Ok, we'll go with that.
Another problem is the way the stripes curve down toward the nose.
I'm just not good with that, they come out looking more like lightning bolts, lol.
Let me try the blue and gold and we'll see.

Navy Chief said:
Am not 100% certain, but the stripes should be dark navy blue and gold.

Really IS a beautiful aircraft, isn't it?

NC
Click to expand...

Do me a favor, interpret how you see the stripes.
It almost looks like a thick blue stripe with a thin white then thin gold stripe..?

And choose the blue and gold...is this close..?

Looks real close. The gold on the aircraft looks to be a shade lighter than the example you showed, Seahawk.
I guess reproducing the actual gold color is a challenge! NC

Looks amazing! I just got in from a couple hours of lawn work. Will try to fire up FSX and look at it later, but SO nice! Now off to take a muscle relaxant (unfortunately NOT beer)...... NC:encouragement:

You must log in or register to reply here.
Back
Top
